Sheetrock® Brand EcoSmart Panels Firecode® X

Name: Sheetrock® Brand EcoSmart Panels Firecode® X
Brand: SHEETROCK® FIRECODE® X EcoSmart
SKU: 141167

Commodity Code: 141167

Sustainable and ultralightweight 5/8 in (15.9 mm) enhanced proprietary Type X panels for interior wall and ceiling applications

Jump to Section

Key Documents

Explore Sizes and Options

Commodity Code: 141167

Selecting attributes may change commodity code

Thickness: 5/8 in

Width: 48 in

Commodity Code: 141167

Overview

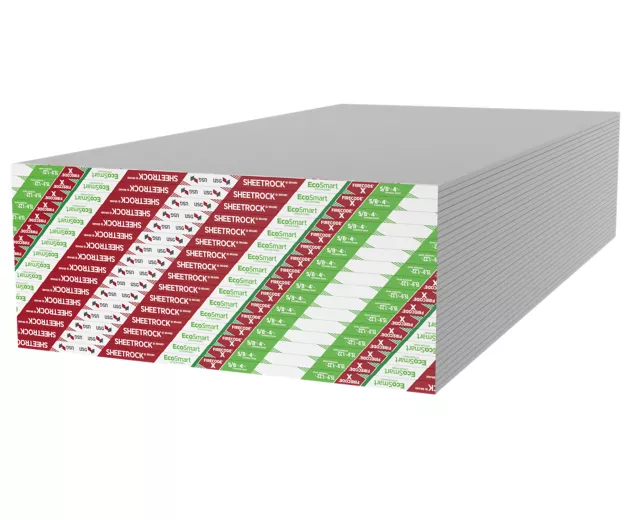

Sheetrock® Brand EcoSmart Panels Firecode® X (UL Type ULIX™) are lightweight 5/8 inch (15.9 mm) enhanced proprietary Type X gypsum panels that have been formulated to achieve all of the same strength and performance characteristics as standard 5/8 inch (15.9 mm) Sheetrock® Brand Firecode® X Panels at a lower environmental impact and reduced weight. The panels feature an innovative noncombustible gypsum core that is encased in 100% recycled face and back papers that form a high strength-to-weight ratio composite design. The face paper is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which UltraLight Innovation Type X (ULIX™) panels are listed. On the face along the long edge of each panel, the UL Type Designation is printed for easy identification by building inspectors.

Sustainable and ultralightweight 5/8 in. (15.9 mm) enhanced proprietary Type X panels for interior wall and ceiling applications
Meet Architecture 2030 Challenge for Products — Up to 21% less global warming potential (GWP)* — Up to 22% less weight reduces transportation fuel energy by up to 20%
Living Building Challenge™ Red List Free
Contain 100% USDA certified biobased content
Up to 94.6% recycled content (regionally available)
Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
USGBC® LEED® v4—may assist in achieving additional credits
Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface burning characteristics and noncombustibility
Comply with ASTM C1396, Standard Specification for Gypsum Board , for 5/8 in. (15.9 mm) and Type X gypsum wallboard
Offer comparable sound, strength and sag resistance to standard 5/8 in. (15.9 mm) Type X
Listed by UL in the most widely specified wall, column, floor- and roof-ceiling assemblies and horizontal membranes (refer to published designs for complete details)
* Compared to standard 5/8 in. (15.9 mm) Type X gypsum panels as presented in the Gypsum Association’s 5/8 in. (15.9 mm) Type X Conventional Gypsum Board Environmental Product Declaration (EPD 10270).

Physical Data
Panel Size: 48 in. x 6 - 16 ft., 48 in. x 81 - 178 in.
Thickness: 5/8 in
Edge: Tapered, Smooth Wall, Square/Tapered, Square
Nominal Weight: 1.8 lb/sq ft

Performance
UL Type Designations: ULIX™
Moisture Resistance: No

Data Sheets and Specifications
Data/Submittal Sheet (English) (PDF 440832)

Sustainability
HPD (English) (PDF 102400)
EPD (English) (PDF 102400)
Optimized EPD (English) (PDF 102400)
GREENGUARD Gold (English) (PDF 102400)
Declare (English) (HTML 102400)
Biopreferred Certification (English) (PDF 3731866)
